ZERO-G PUMP

The Next Evolution in Zero-Gravity Fluid Dynamics.

Go from raw CAD engineering files to a high-fidelity, physics-validated internal pump mechanism animation 3.5x faster than legacy product rendering cycles.

3D Mesh Internal Components

3.5X Accelerated Render Output

0-G Fluid Simulation Environment

The Production Economics

Product-Relevant Economics

50 Hours

Engineering validation time saved per layout iteration.

2–3X

B2B Buyer Engagement Lift over static 2D cross-sections.

15–30%

Accelerated sales cycle for technical aerospace and defense contracts.

$30k+

Prototyping budget saved by replacing physical cutaway models.

The Challenge

Traditional mechanical cross-sections and technical spec sheets fail to convey complex, multi-axis fluid movement—especially when dealing with closed-loop systems operating without gravitational assistance. We engineered a definitive visual blueprint to bridge that comprehension gap.

What the Simulation Shows

Sub-Surface Component Modeling

High-precision, transparent 3D visualization of the pump’s internal chambers, seals, and rotors.

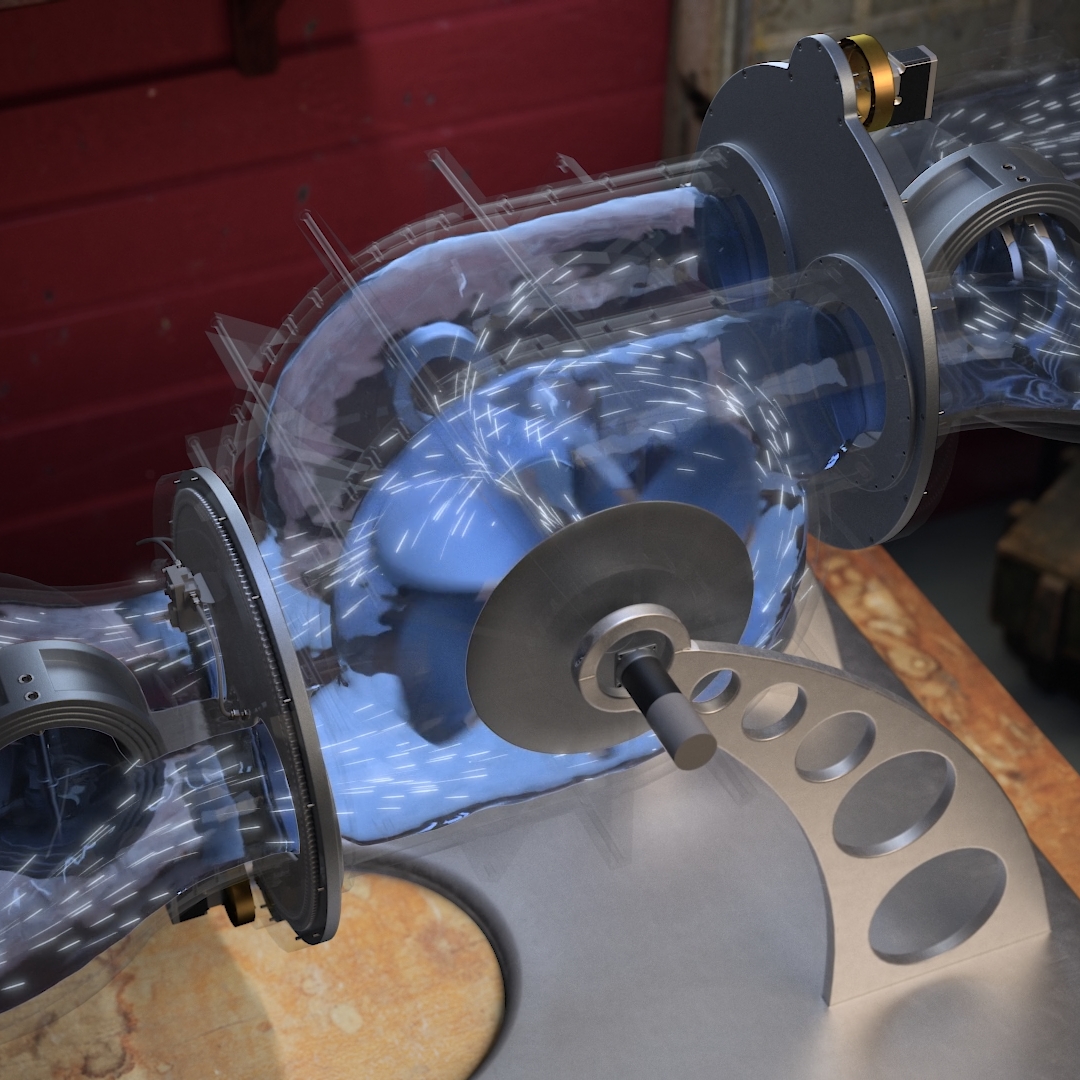

Zero-G Kinetic Dynamics

Step-by-step kinetic animation demonstrating fluid propulsion mechanics completely independent of gravity.

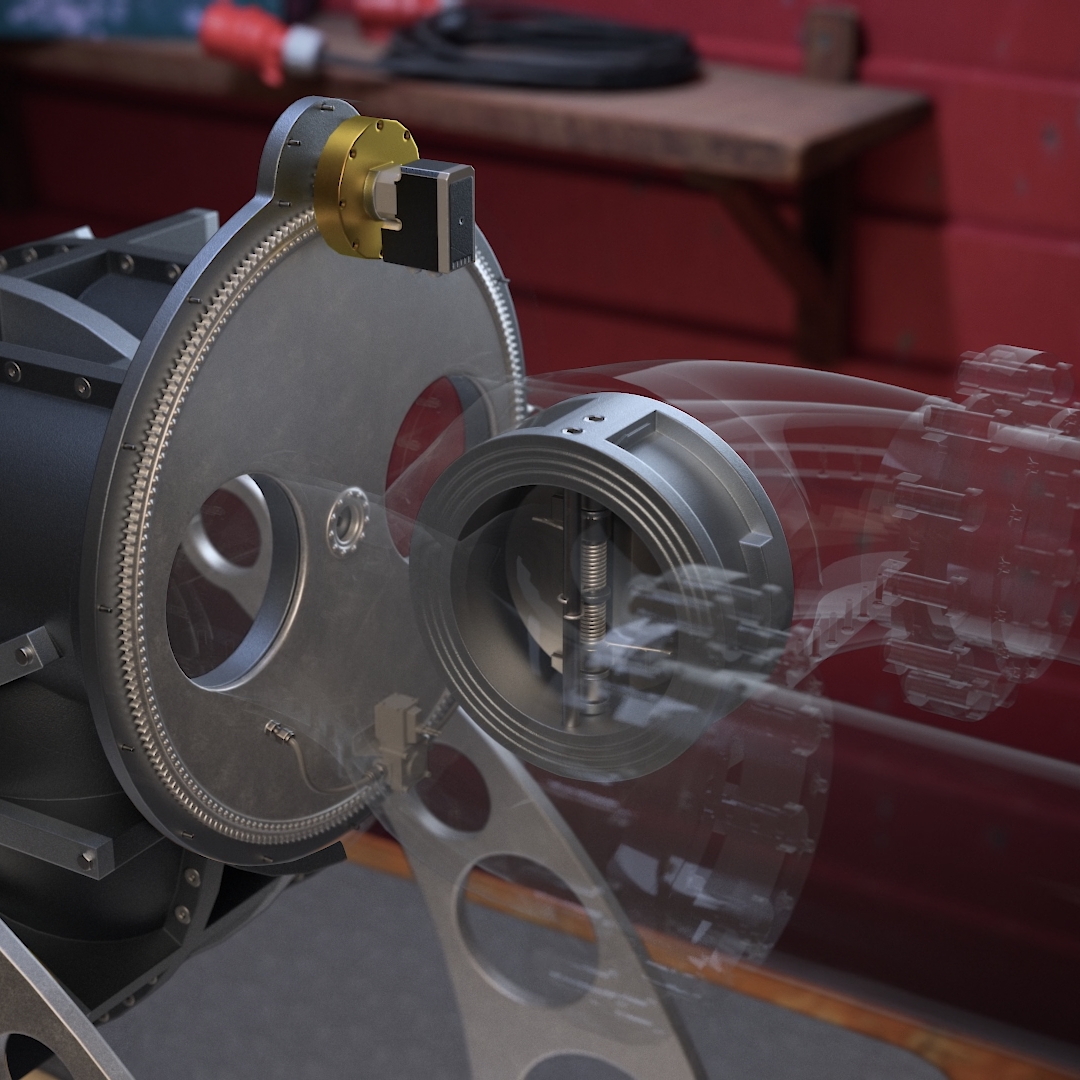

Exploded Technical Assembly

Detailed visual breakdown of the internal mechanism layer-by-layer to exhibit exact manufacturing tolerance parameters.

Dynamic Pressure Simulation

Color-mapped pressure variant animations tracking vector forces and fluid velocity throughout the system loop.

Outcome

By porting the client's engineering CAD assemblies into our specialized industrial animation workflow, we eliminated the friction of abstract technical pitches. The intricate mechanics of the Zero Gravity Pump were synthesized into an intuitive, presentation-ready sequence that validates mechanical intent and operational flow in tandem. The final asset allows the client to anchor high-level procurement presentations and technical marketing campaigns with absolute scientific and aesthetic authority.

Fluid & Propulsion Engineering

Physics-First Validation

Our rendering engine processes deep mechanical assets down to individual part files, ensuring every fluid path simulation matches rigorous industrial standards. Unlike generalized 3D graphics, this simulation captures complex physical movements accurately to display fluid behavior across a zero-gravity vacuum.

Multi-Axis Kinematic Sequences (Internal gear, impellers, and rotational tracking)
Volumetric Fluid Diagnostics (Closed-loop path verification, velocity profiling)
Photorealistic Surface Accuracy (Anodized metals, clear polymer views, custom lighting metrics)
